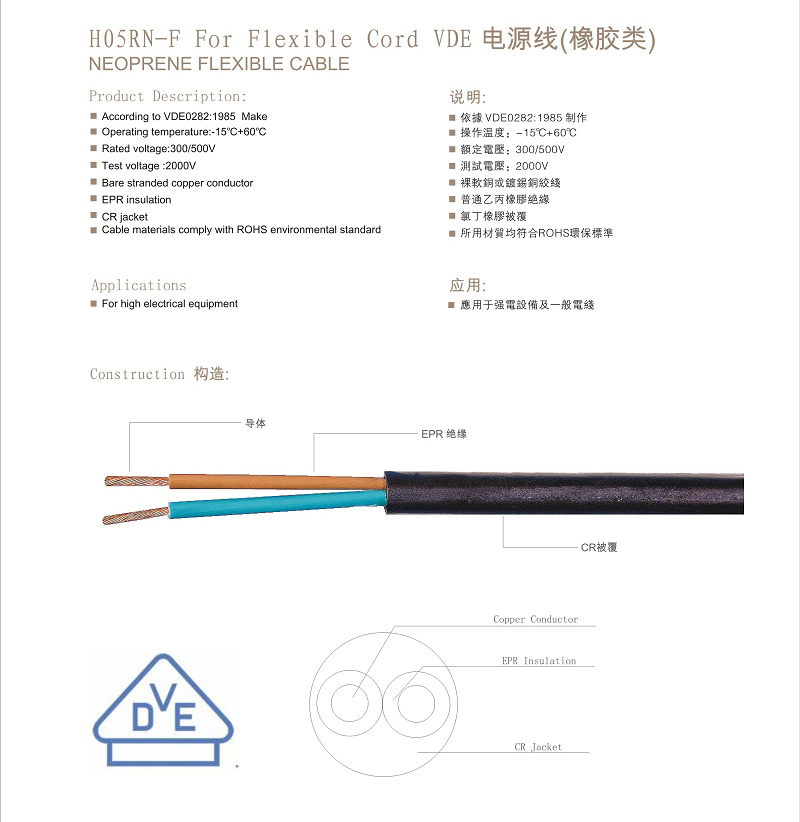

| 欧式VDE认证 H05RN-F H05RR-F 橡胶线 |
|
|
| |
欧式VDE认证 H05RN-F H05RR-F 橡胶线规格如下：
|
NO.of
conductor
导体芯数 |
Conductor 导体 |
Insulation
thickness
绝缘厚度
(mm)
|
Sheath
thickness
护套厚度
（mm） |
Overall
diameter
完成外径
(mm) |
Max Conductor resistance at 20℃
20℃时导体电阻最大值
Ω/KM |
|
Normal area
标称截面
mm2 |
Construction
结构
（NO./mm） |
| 1 |
0.75 |
24/0.20 |
0.8 |
0.8 |
4.6±0.2 |
26.0 |
26.7 |
| 1.0 |
32/0.20 |
0.8 |
0.8 |
4.8±0.2 |
19.5 |
20.0 |
| 1.5 |
30/0.25 |
0.8 |
0.8 |
5.1±0.2 |
13.3 |
13.7 |
| 2 |
0.75 |
24/0.20 |
0.6 |
0.9 |
6.4±0.2 |
26.0 |
26.7 |
| 1.0 |
32/0.20 |
0.6 |
0.9 |
7.0±0.2 |
19.5 |
20.0 |
| 1.5 |
30/0.25 |
0.8 |
1.0 |
8.7±0.2 |
13.3 |
13.7 |
| 2.5 |
49/0.25 |
0.9 |
1.1 |
10.2±0.3 |
7.98 |
8.21 |
| 3 |
0.75 |
24/0.20 |
0.6 |
0.9 |
7.0±0.2 |
26.0 |
26.7 |
| 1.0 |
32/0.20 |
0.6 |
0.9 |
7.4±0.2 |
19.5 |
20.0 |
| 1.5 |
30/0.25 |
0.8 |
1.0 |
9.1±0.2 |
13.3 |
13.7 |
| 2.5 |
49/0.25 |
0.9 |
1.1 |
10.8±0.3 |
7.98 |
8.21 |
| 4.0 |
56/0.30 |
1.0 |
1.2 |
13.3±0.4 |
4.95 |
8.09 |
| 6.0 |
84/0.30 |
1.0 |
1.4 |
15.4±0.5 |
3.30 |
3.39 |
| 4 |
0.75 |
24/0.20 |
0.6 |
0.9 |
7.7±0.2 |
26.0 |
26.7 |
| 1.0 |
32/0.20 |
0.6 |
0.9 |
8.0±0.2 |
19.5 |
20.0 |
| 1.5 |
30/0.25 |
0.8 |
1.0 |
10.1±0.3 |
13.3 |
13.7 |
| 2.5 |
49/0.25 |
0.9 |
1.1 |
12.1±0.4 |
7.98 |
8.21 |
| 4.0 |
56/0.30 |
1.0 |
1.2 |
14.8±0.5 |
4.95 |
8.09 |
| 6.0 |
84/0.30 |
1.0 |
1.4 |
17.1±0.5 |
3.30 |
3.39 | |
|
|
|
|
|
|
|
|
|
|
|
