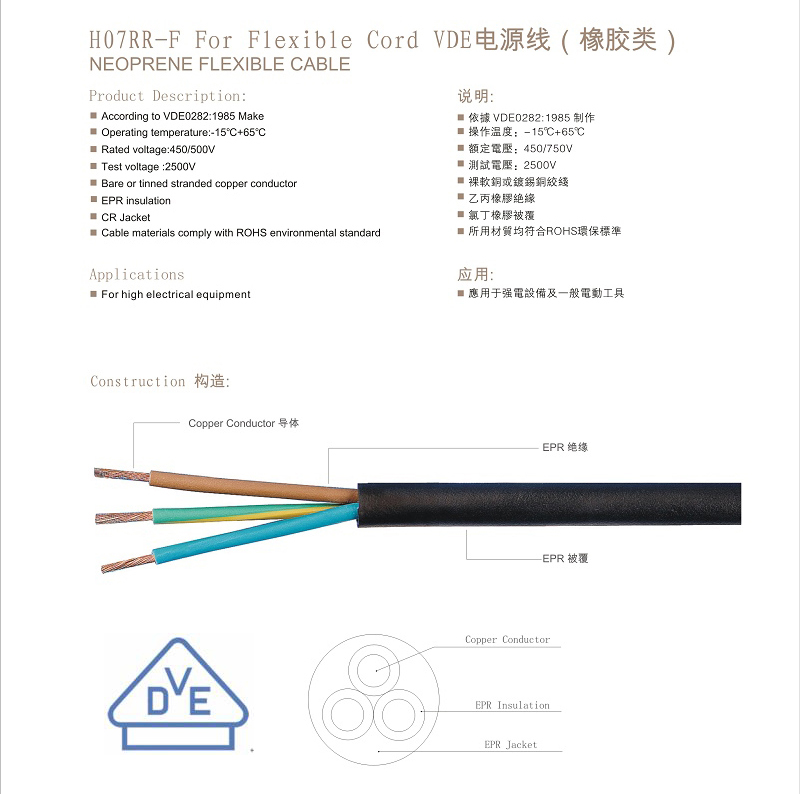

| VDE认证 H07RR-F 橡胶线 |
|
|
| |
VDE认证 H07RR-F 橡胶线规格如下：
|
NO.of
conductor
导体芯数 |
Conductor 导体 |
Insulation
thickness
绝缘厚度
(mm)
|
Sheath
thickness
护套厚度
（mm） |
Overall
diameter
完成外径
(mm) |
Max Conductor resistance at 20℃
20℃时导体电阻最大值
Ω/KM |
|
Normal area
标称截面
mm2 |
Construction
结构
（NO./mm） |
| 1 |
1.5 |
30/0.25 |
0.8 |
1.4 |
6.0±0.1 |
13.3 |
13.7 |
| 2.5 |
49/0.25 |
0.9 |
1.4 |
6.6±0.1 |
7.98 |
8.21 |
| 4.0 |
56/0.30 |
1.0 |
1.5 |
7.8±0.2 |
4.95 |
5.09 |
| 6.0 |
84/0.30 |
1.0 |
1.6 |
8.8±0.3 |
3.30 |
3.39 |
| 2 |
1.0 |
32/0.20 |
0.8 |
1.3 |
8.6±0.2 |
19.5 |
20.0 |
| 1.5 |
30/0.25 |
0.8 |
1.5 |
9.6±0.2 |
13.3 |
13.7 |
| 2.5 |
49/0.25 |
0.9 |
1.7 |
11.4±0.3 |
7.98 |
8.21 |
| 4.0 |
56/0.30 |
1.0 |
1.8 |
13.4±0.4 |
4.95 |
5.09 |
| 6.0 |
84/0.30 |
1.0 |
2.0 |
15.6±0.4 |
3.30 |
3.39 |
| 3 |
1.0 |
32/0.20 |
0.8 |
1.4 |
9.2±0.2 |
19.5 |
20.0 |
| 1.5 |
30/0.25 |
0.8 |
1.6 |
10.3±0.3 |
13.3 |
13.7 |
| 2.5 |
49/0.25 |
0.9 |
1.8 |
12.0±0.4 |
7.98 |
8.21 |
| 4.0 |
56/0.30 |
1.0 |
1.9 |
14.4±0.4 |
4.95 |
5.09 |
| 6.0 |
84/0.30 |
1.0 |
2.1 |
16.8±0.5 |
3.30 |
3.39 |
| 4 |
1.0 |
32/0.20 |
0.8 |
1.5 |
10.3±0.3 |
19.5 |
20.0 |
| 1.5 |
30/0.25 |
0.8 |
1.7 |
11.3±0.3 |
13.3 |
13.7 |
| 2.5 |
49/0.25 |
0.9 |
1.9 |
13.4±0.4 |
7.98 |
8.21 |
| 4.0 |
56/0.30 |
1.0 |
2.0 |
15.9±0.4 |
4.95 |
5.09 |
| 6.0 |
84/0.30 |
1.0 |
2.3 |
18.6±0.5 |
3.30 |
3.39 | |
|
|
|
|
|
|
|
|
|
|
|
